Conectarea Wacom Cintiq Pro 16 la un PC sau Mac este cât se poate de ușoară. Tot ce trebuie să faceți este să conectați cablurile USB-C și HDMI la computerul dorit și sunteți gata de plecare. Toate cablurile sunt conectate la partea superioară a dispozitivului și, prin urmare, nu interferează cu munca zilnică.
Product specifications

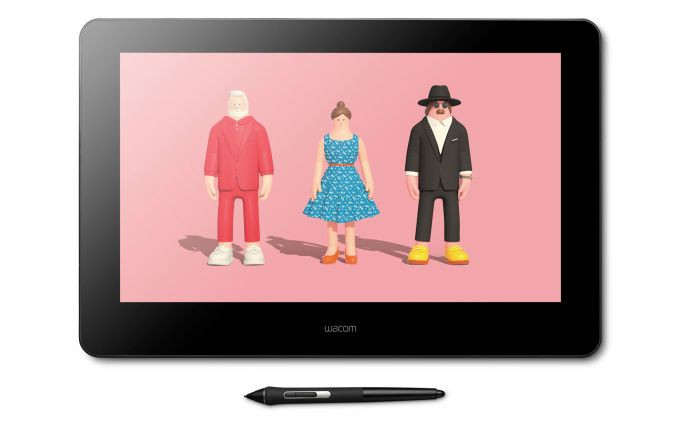

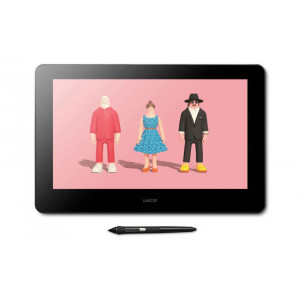

Model Wacom Cintiq Pro 16
Model Number DTH167
Display Size / Resolution 15.6 in (39.6 cm) / Ultra HD (3840 x 2160)
Active Area 13.6 x 7.6 in (344 x 194 mm)
Size 16.1 x 10.5 x 0.9 in (410 x 266 x 22 mm)
Weight 4.2 lbs (1.9 kg) without optional stand
Color Performance 16.7 million colors (8 bit), 98% Adobe® RGB coverage (CIE1931) (typ)
Viewing Angle 178° (89/89) H, (89/89) V (typ)
Contrast Ratio / Response Rate 1000:1 (typ) / 30 ms (typ)
Power Consumption Maximum power consumption: 25 W or less, 1.5 W or less when asleep, 0.3 W or less when off
Aspect Ratio / Brightness 16:9/300 cd / m2
(typ)
Connectivity 1 x USB-C, 1 x HDMI
Graphics Input USB-C port with DisplayPort Alternate Mode (UHD), or HDMI 2.0 or later (UHD) port and USB-A port
Multi-Touch Physical switch to turn multi-touch on and off; pan, zoom and rotate gestures available in most applications including Adobe® Photoshop® and Illustrator®
Pen Battery-free Pro Pen 2 with 2 customizable side switches and 8192 pressure levels in both pen tip and eraser (patented electromagnetic resonance method)
Supported Pen Tilt Angle +/-60 degrees

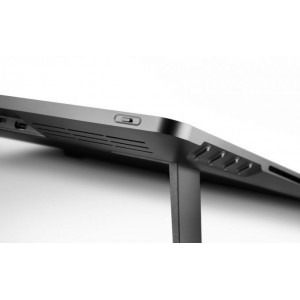

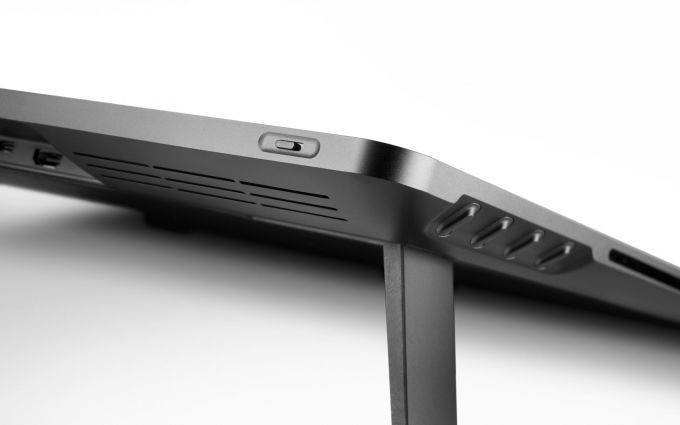

ExpressKeys™ 8 easy to access and customizable, application-specific ExpressKeys placed at the rear edge of the display

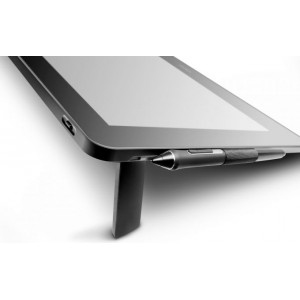

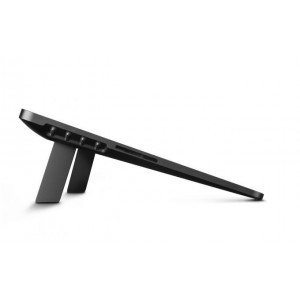

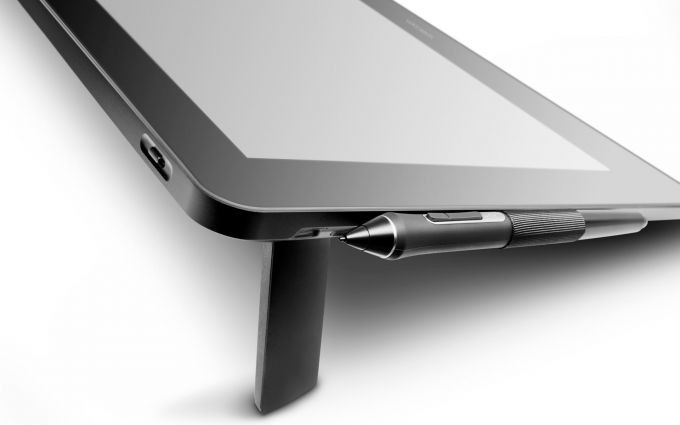

Stand Integrated pop-out legs for 20° angle; optional detachable Wacom Adjustable Stand with 19° to 85° angle;

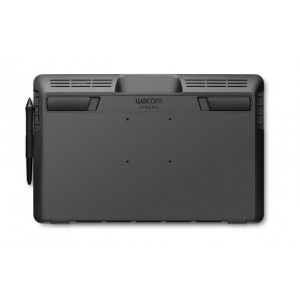

VESA mount (75 x 75 mm) to attach third party arm or stand
Security Kensington® MicroSaver 2.0 (lock to be purchased separately)
Productivity Boosters Physical on/off switch for multi-touch; ExpressKeys, time-saving on screen settings; Touch Ring on optional ExpressKey Remote
Ergonomics Right or left-handed use; built-in stand (4° without legs or 20° with legs); optional Wacom Adjustable Stand available (19° to 85°)*; VESA mount (75 x 75 mm)
to attach third party arm or stand; Wacom Pro Pen 2 with comfortable, ergonomic grip; detachable pen holder to be placed at each side of the display
Compatibility / System Requirements Windows 7, 8.1, or 10; macOS 10.14 or later; USB-C port with DisplayPort Alternate Mode (UHD), or HDMI 2.0 or later (UHD) port and USB-A port;
internet access to download driver

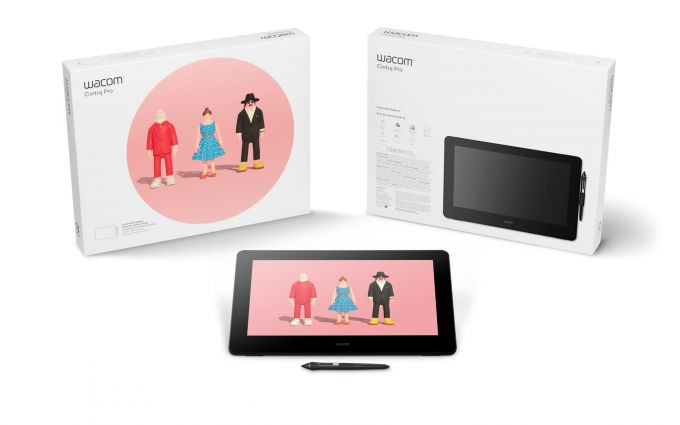

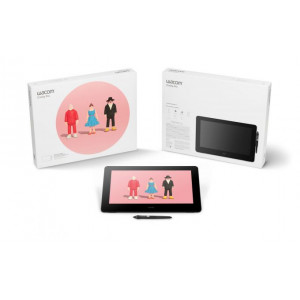

What’s Included Wacom Cintiq Pro, Wacom Pro Pen 2, pen stand with 10 replacement nibs (6 standard, 4 felt) and nib removal tool, detachable pen holder with 3 replacement
nibs, PVC-free USB-C to USB-C cable (1.0 m), PVC-free USB-C to USB Standard A cable (1.8 m), PVC-free HDMI 2.0 cable (1.8 m), PVC-free AC adapter,
power cord (1.0 m), quick start guide, cleaning cloth
Additional Accessories ExpressKey Remote, Wacom Adjustable Stand, Wacom Soft Case (Large), Wireless Bluetooth® Keyboard, Wacom Pro Pen 2, Wacom Pro Pen 3D,
Wacom Pro Pen slim, replacement nibs, prior generation pens (Pro, Classic, Art, Airbrush, Grip)
